Bluetooth® - Smart Radiator Thermostat

Smart Radiator Thermostat with Bluetooth® for regulation of room temperature according to the personal needs

Bluetooth® - Smart Radiator Thermostat Bluetooth® - Smart Radiator Thermostat Bluetooth® - Smart Radiator Thermostat Bluetooth® - Smart Radiator Thermostat Bluetooth® - Smart Radiator Thermostat Bluetooth® - Smart Radiator Thermostat
Bluetooth® - Smart Radiator Thermostat
Bluetooth® - Smart Radiator Thermostat
Bluetooth® - Smart Radiator Thermostat
Bluetooth® - Smart Radiator Thermostat
Bluetooth® - Smart Radiator Thermostat
Bluetooth® - Smart Radiator Thermostat
Highlights
  • Intuitive operation thanks to the free iOS and Android app
  • Can also be operated without a smartphone
  • Thanks to the individual configuration of the week program, any kind of temperature profile with up to 7 switching intervals can be defined
  • Boost function for heating up the radiator quickly and briefly
  • Compact housing with low-noise operation
  • Up to 5 radiator thermostats per room can be combined and controlled via app
  • In typical applications, up to 30 % energy savings
  • Automatic temperature reduction during ventilation provides additional energy savings
  • Holiday function: The temperature can be reduced until you get home
  • Fits to valves of most common manufacturers
  • Easy to mount without having to drain any water or intervene in the heating system; no special tools required for any type of radiator



Please click here for free download of the iOS or Android app.



The exchange of device data between the smartphone app and the radiator thermostat is performed via Bluetooth®. Using the Bluetooth® function requires activation of the location data when using Android devices. The smartphone app does, however, neither read not evaluate these data at any time. When using the radiator thermostat with BLE, no personal data is collected, processed or transmitted to third parties.

Description

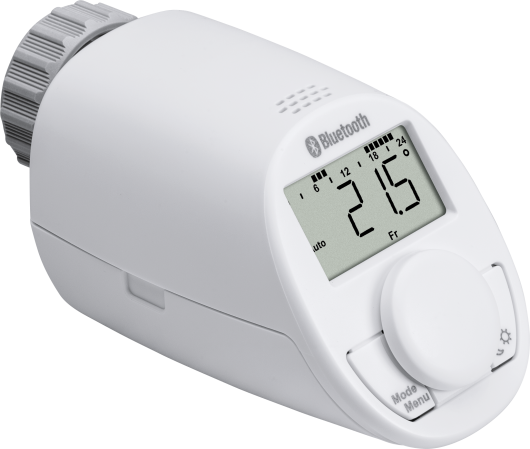

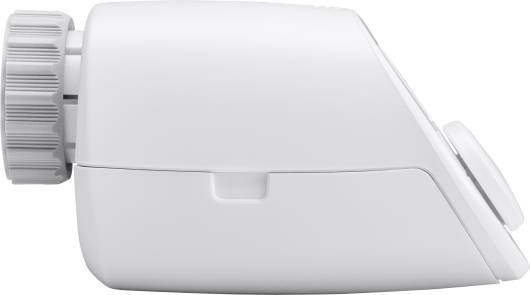

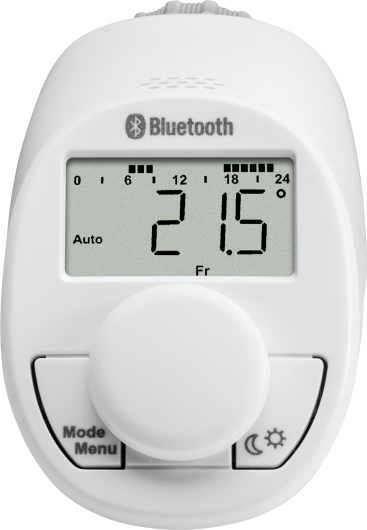

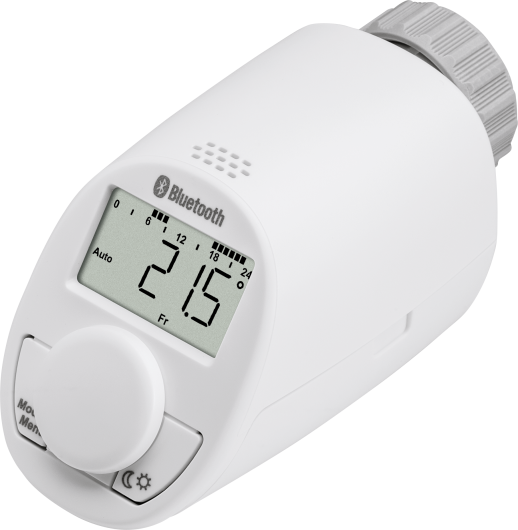

The Eqiva Bluetooth® - Smart Radiator Thermostat replaces conventional radiator thermostats and offers demand-based regulation of the room temperature, enabling users to save up to 30 % on their energy costs. With maximum ease of use and constant temperatures, the radiator thermostat increases the living comfort at the same time. Due to the integrated Bluetooth® module, operation and configuration can be done not only on the device itself, but also via the free smartphone app. With an activated Bluetooth® connection, up to ten rooms can be comfortably equipped with up to five radiator thermostats each. If several thermostats are used in one room, you only need to grab your smartphone and the temperature selected in your app is automatically adjusted to all Eqiva Bluetooth® - Smart Radiator Thermostats. Furthermore, individual heating profiles with up to seven switching times per day can be defined for each room. And rooms are heated only if its really necessary. The included operating lock avoids that your settings can be changed by unauthorised persons. If the boost mode is activated by pressing the control wheel shortly, all radiator valves are opened to 80 % for a period of 300 seconds. Thus, the room temperature is heated quickly. If you are not around for awhile, the holiday mode reduces the room temperature to the previously selected eco temperature. The integrated frost protection function makes sure that the temperature of the room does not fall below 5 °C. For installation of the low-noise thermostat there is no need of draining any water. Also, no expensive special tools are required.

You can download the free smartphone app for iOS or Android here.

Technical Specifications

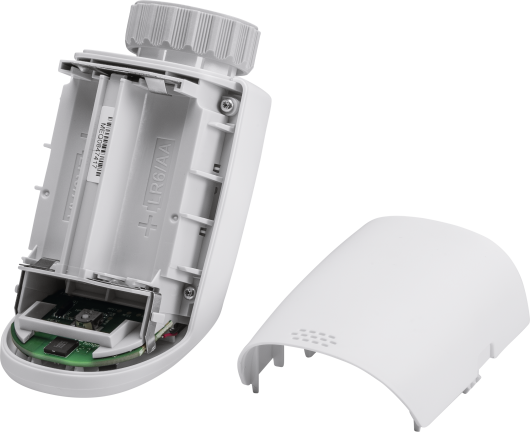

Supply voltage
2x 1.5 V LR6/mignon/AA
Current consumption
100 mA max.
Battery life
batteries 2 years (typically)
Radio frequency
2,402 GHz – 2,480 GHz
Open area RF range
10 m (typ.)
Smartphones
for Apple (from iOS 8.3) and Android (from version 4.4)
Display
LCD

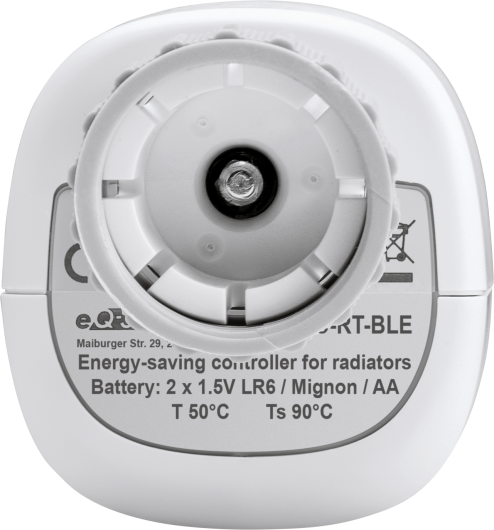

Threaded connection
M30 x 1.5 mm
Compatible with
Heimeier, MNG, Honeywell-Braukmann, Oventrop, Schlösser, Comap, Valf Sanayii, Idmar, Jaga, Junkers, Pegler, R.B.M., Watts, Danfoss RA witch adapter etc.
Degree of protection
IP20
Dimensions (W x H x D)
55 x 60 x 102 mm
Weight
162 g (incl. batteries)
Ordering Informations
Product Name
CC-RT-BLE-EQ
Item Number
141771E0
EAN Code
4047976141777
Package
75
Dimesions incl. Packaging
69 x 66 x 111+30 mm
Weight incl. Packaging
220 g
Downloads
Manual
Manual: FR/NL
Manual: PL/IT
Product Data Sheet
Declaration of conformity
