Highlights

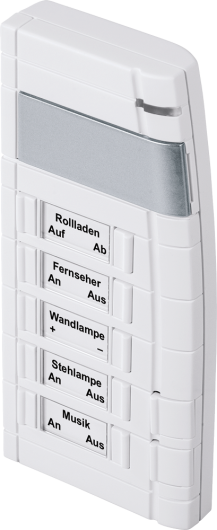

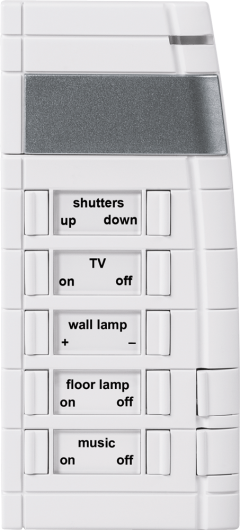

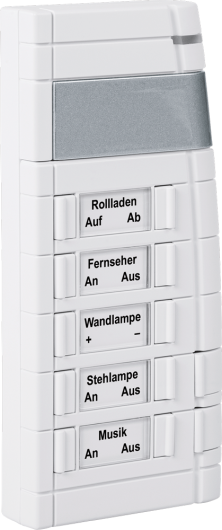

- Enables the operation of connected Homematic devices via 12 individually configurable buttons
- Immediate confirmation during radio communication via duo-coloured LED
- One button can simultaneously execute several functions (e.g. move shutters down and switch on the lights at the same time)
- Secure thanks to AES authentication
- Labelling fields for button functions can be replaced at any time
Technical Specifications
Supply voltage

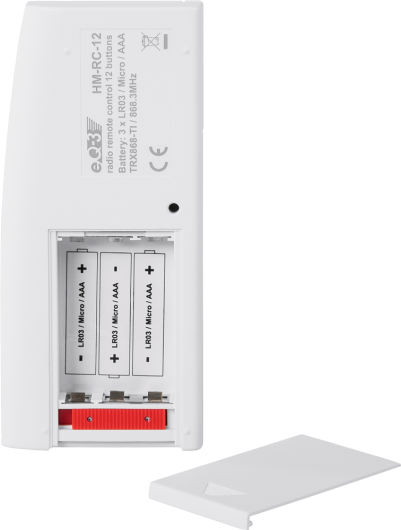

3x 1.5 V LR03/micro/AAA
Battery life
3 years (typically), based on a usage rate of 10 times per day
Degree of protection
IP20
Dimensions (W x H x D)
123 x 56 x 19 mm
Weight
66 g (not incl. battery)
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-RC-12-W
Item Number
83359
EAN Code
4047976833597
Package
72
Dimesions incl. Packaging
184 x 93 x 48 mm
Weight incl. Packaging
189,0 g
