Highlights

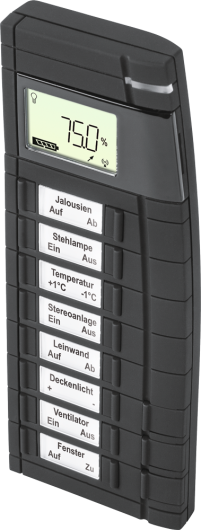

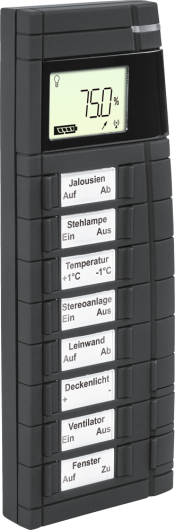

- Enables the operation of connected Homematic devices via 19 individually configurable buttons
- Immediate confirmation during radio communication via duo-coloured LED
- One button can simultaneously execute several functions (e.g. move shutters down and switch on the lights at the same time)
- Secure thanks to AES authentication
- Labelling fields for button functions can be replaced at any time
Technical Specifications
Supply voltage

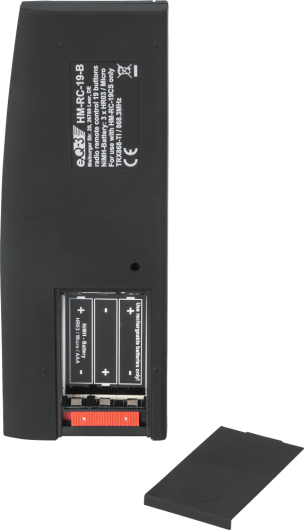

3x 1.5 V LR03/micro/AAA

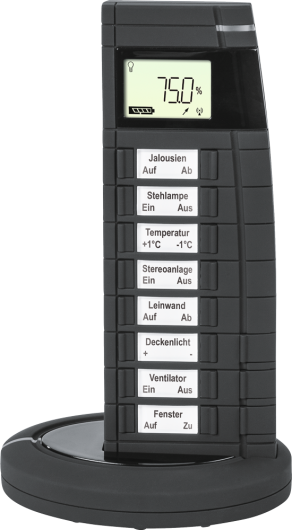

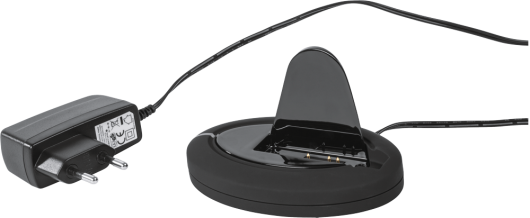

Supply voltage (charging station)
Plug-in mains adapter 7.5 VDC
Typ. open area RF range
200 m
Radio frequency
868.3 MHz
Degree of protection
IP20
Dimensions (W x H x D)
167 x 63 x 19 mm
Weight
90 g (not incl. batteries)
Ordering Informations
Product Name
HM-RC-19-B
Item Number
83361
EAN Code
4047976833610
Package
30
Dimesions incl. Packaging
184 x 112 x 97 mm
Weight incl. Packaging
455,0 g
