Highlights
- Numerous remote controls can be taught-in and there is the option of direct operation via a rocker switch
- Compact design for installation in size 60 mm flush-mounting boxes
- Easy to align with outer contour
- With the appropriate adapter, the device can be integrated into the most popular switch designs of leading manufacturers: Busch-Jaeger, Gira, Merten, Berker, Jung, düwi, Kopp
- Can also be integrated into existing installations in a cost-effective way by making use of existing frames and rockers
- Easy to assemble and install
- Existing installations and cabling can continue to be used
- A neutral conductor is required for installation

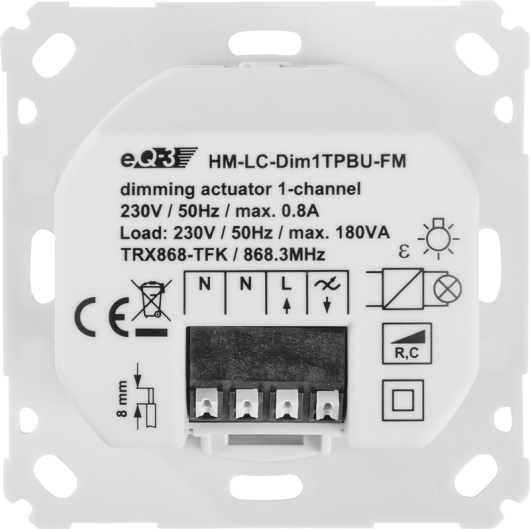

Technical Specifications
Supply voltage
230 V/50 Hz
Current consumption
0.8 A (max.)
Power consumption in standby
1 W
Minimum load
10 VA
Max. switching capacity
180 VA
Load type
ohmic and capacitive lamp load
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Installation
only in normal commercial switch boxes (device boxes) in accordance with DIN 49073-1
Dimensions (W x H x D)
71 x 71 x 37 mm (depth for flush-mounting: 32 mm)
Weight
43 g
Typical open area RF range
200 m
Radio frequency
868.3 MHz
Ordering Informations
Product Name
HM-LC-Dim1TPBU-FM
Item Number
103020
EAN Code
4047976030200
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
136,4 g
