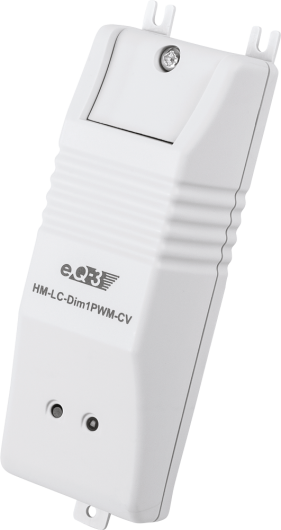

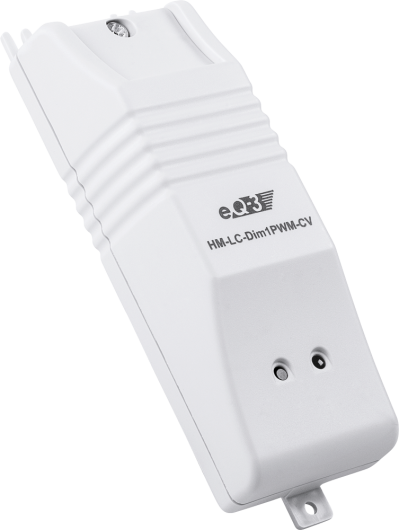

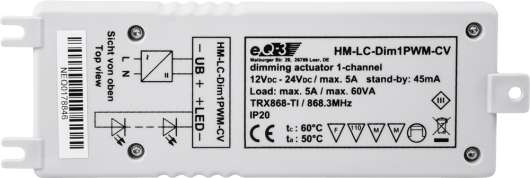

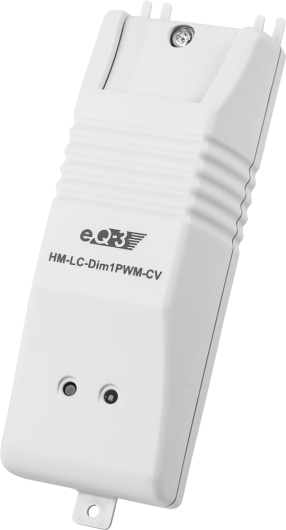

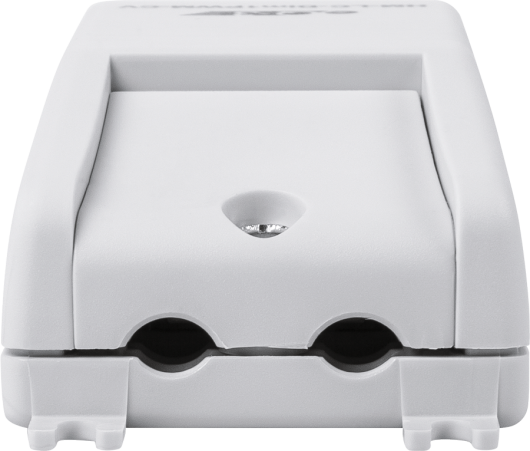

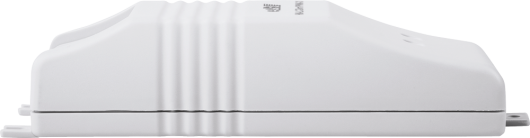

HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount

Convenient dimming of lighting thanks to the wireless dimming actuator for concealed installation

HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount
HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount
HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount
HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount
HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount
HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount
HomeMatic Wireless Dimming Actuator 1-channel, PWM LED, ceiling-void mount
Highlights
  • Super-flat LED dimming actuator for ceiling-void mount
  • Low standby power consumption
  • Signal LED
  • Multiple remote controls can be connected
Technical Specifications
Supply voltage
12 VDC-24 VDC
Max. switching capacity
60 W (5 A@12 V; 2.5 A@24 V)
Current consumption
5 A max.
Dimming method
Pulse width modulation (PWM)
Load type
Constant voltage LEDs (ohmic load)
Typ. open area RF range
300 m
Degree of protection
IP20
Dimensions (W x H x D)
49 x 34 x 148 mm (incl. lugs)
Weight
87 g
Ordering Informations
Product Name
HM-LC-Dim1PWM-CV
Item Number
99444
EAN Code
4047976994441
Package
72
Dimesions incl. Packaging
184 x 93 x 48 mm
Weight incl. Packaging
168,5 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
