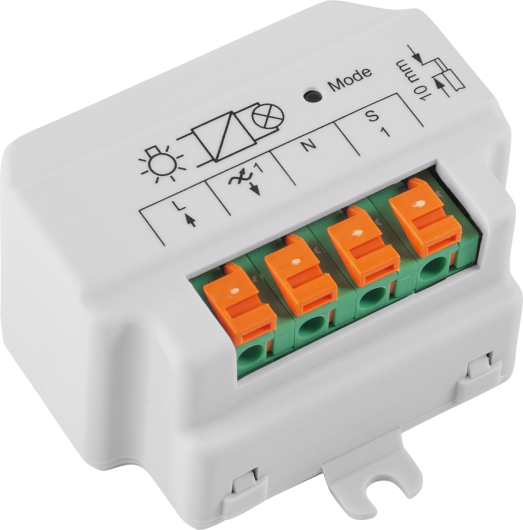

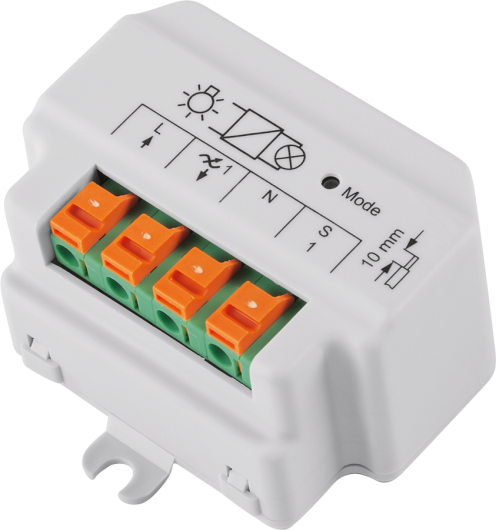

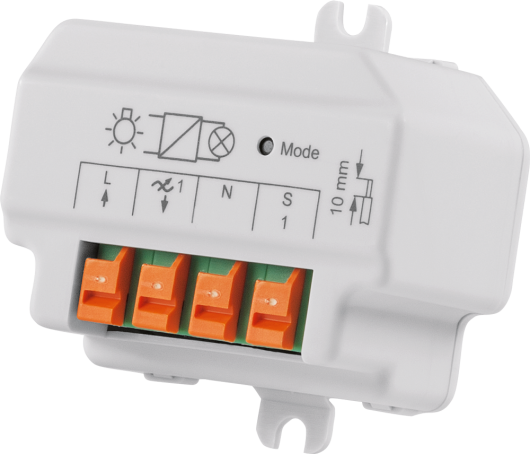

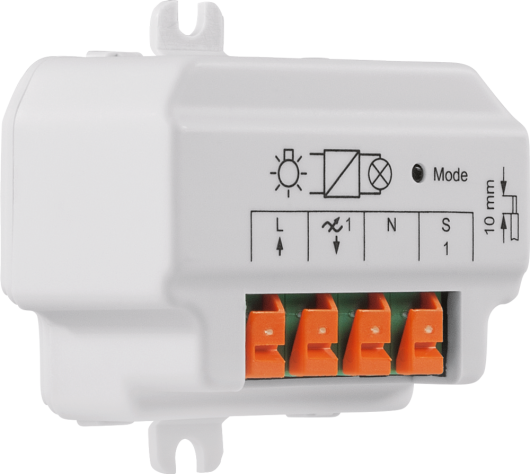

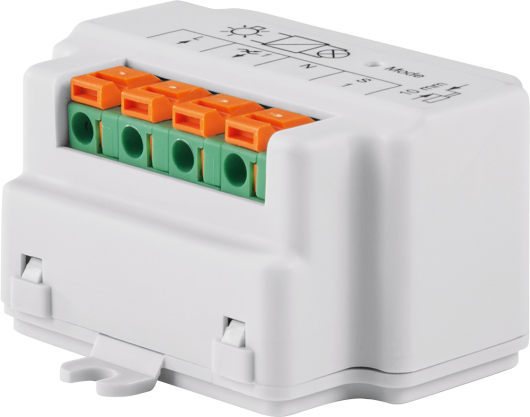

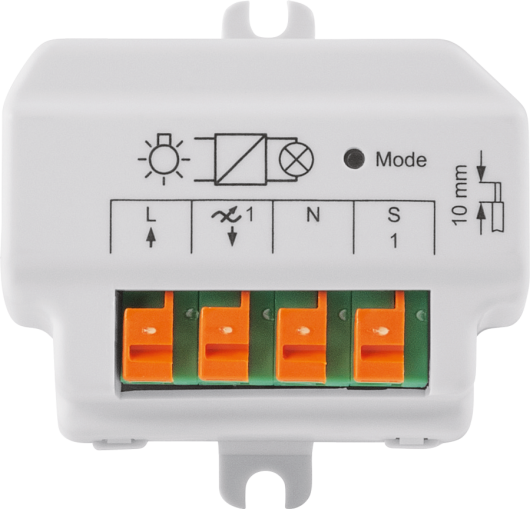

HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount

Flush-mount dimming actuator allows dimming of incandescent lamps, HV and LV halogen lamps (with electronic transformer) and dimmable energy-saving lamps as well as dimmable LEDs

HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount
HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount
HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount
HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount
HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount
HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount
HomeMatic Wireless Dimming Actuator 1-channel, trailing edge, flush-mount
  • Highlights
  • Technical Specifications
  • Ordering Informations
  • Downloads
Highlights
  • Trailing edge dimming actuator for wireless dimming of loads
  • The slimline design means it can easily be installed in a flush-mounting box
  • Adjustable ramp time with soft-on/soft-off function for longer bulb life
  • Adjustable time profile for individual dimming and switching of connected loads
  • Configurable maximum ON time
Technical Specifications
Supply voltage
230 V/50 Hz
Minimum load
10 VA
Minimum current
40 mA
Max. switching capacity
180 VA
Degree of protection
IP20
Dimensions (W x H x D)
53 x 53 x 30 mm
Weight
43 g
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-LC-Dim1T-FM
Item Number
91816
EAN Code
4047976918164
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
120,3 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
