Highlights
- Compact design and integrated infra-red sensor (reflection coupler) - there is no need of an additional magnet contact

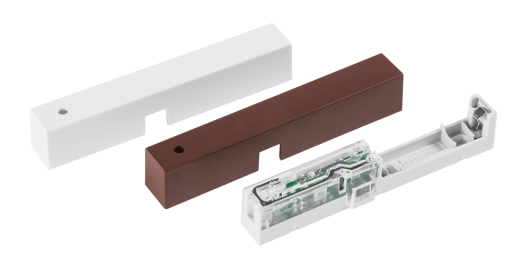

- Due to the supplied white and brown caps the device adapts to door and window frames
- Simple and flexible installation thanks to supplied adhesive stripes or screws
- Integration tamper contact informs about unauthorised removal and manipulation
- Secure thanks to AES authentication
Technical Specifications
Supply voltage
1x 1.5 V LR03/Micro/AA
Current consumption
100 mA max.
Battery life
2 years (typ.)
Degree of protection
IP20
Ambient temperature
-20 to +55 °C
Typ. open area RF range
300 m
Radio frequency
868.3 MHz
Receiver category
SRD category 2
Duty cycle
< 1 % per h
Dimensions (W x H x D)
15 x 100 x 18 mm
Weight
30 g (incl. batteries)
Ordering Informations
Product Name
HM-Sec-SCo
Item Number
130297
EAN Code
4047976302970
Package
144
Dimesions incl. Packaging
122 x 93 x 36 mm
Weight incl. Packaging
99,6 g
