Highlights
- Up to 3 LAN Gateways can be used within one installation with a CCU2 via the existing network infrastructure in the house
- Easy software update via CCU2
- Quick and easy integration of LAN Gateway into the network thanks to automatic address assignment via DHCP
- Increased operational reliability thanks to integrated recovery system

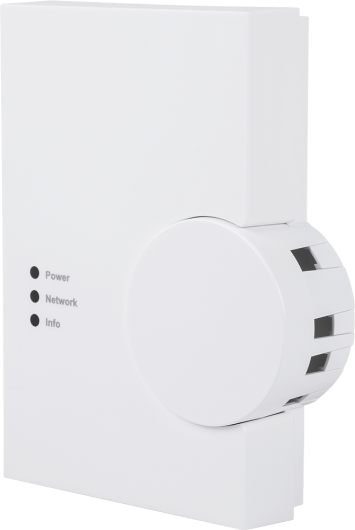

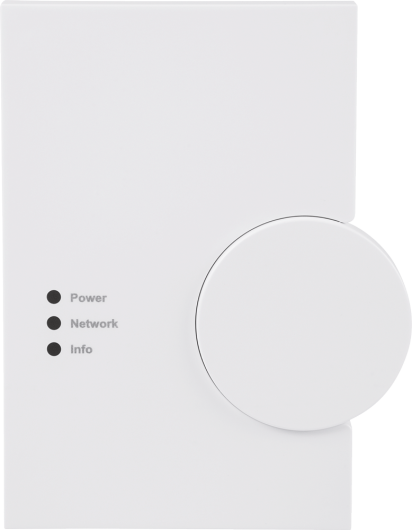

- Status displayed via three indicator lights
Technical Specifications
Supply voltage
5 VDC
Current consumption
250 mA max.
Standby power consumption
0.8 W
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Dimensions (W x H x D)
116 x 150 x 34 mm
Weight
150 g (without power supply unit)
Radio frequency
868.3 MHz
Typ. open area RF range
500 m
Ordering Informations
Product Name
HM-LGW-O-TW-W-EU-2
Item Number
104029A0
EAN Code
4047976040292
Package
18
Dimesions incl. Packaging
187 x 184 x 97 mm
Weight incl. Packaging
497,0 g
