Highlights
- Optimum detection and flexible application with a detection range of up to 12 m and a detection angle of 90°
- Able to rotate by 45° continuously to the left and right side
- Creep zone protection enables the detection of motion below the motion detector
- Brief changes in the level of brightness are filtered out to avoid unintended triggering
- Brightness level for triggering can be flexibly adjusted
- Can be positioned anywhere thanks to battery operation and radio communication
- Removing the motion detector from its bracket will immediately be detected by the tamper contact
Technical Specifications
Supply voltage

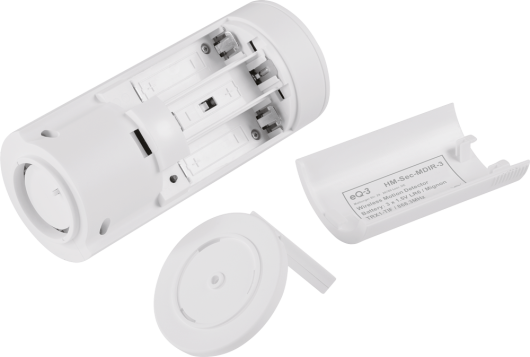

3x 1.5 V LR6/mignon/AA
Battery life
2 years (typ.)
Degree of protection
IP20
Ambient temperature
-10 to +55 °C
Main lens
Detection angle
approx. 90°
Detection range
approx. 12 m
Creep zone protection
Detection angle
approx. 43°
Detection range
max. 4 m
Swivel range
± 45°
Dimensions (Ø x H)
55 x 132 mm
Weight
180 g (including batteries)
Typ. open area RF range
300 m
Radio frequency band
868.0-868.6 MHz
Ordering Informations
Product Name
HM-Sec-MDIR-3
Item Number
142256A0
EAN Code
4047976422562
Package
32
Dimesions incl. Packaging
184 x 140 x 73mm
Weight incl. Packaging
333,0 g
