Highlights
- All Homematic actuators can be taught-in directly
- LED signals sending and confirmation of commands and gives information about error messages
- Easy to integrate into existing switches from the following manufacturers:
Berker (S.1, B.1, B.3, B.7 Glas), GIRA (System 55, Standard 55, E2, E22, Event, Esprit), Merten (1-M, Atelier-M, M-Smart, M-Arc, M-Star, M-Plan), JUNG (A 500, AS 500, A plus, A creation) and ELSO (Joy) - With the push-button it is e.g. possible to switch lights on and off, dim lights brighter or darker or move shutters up or down

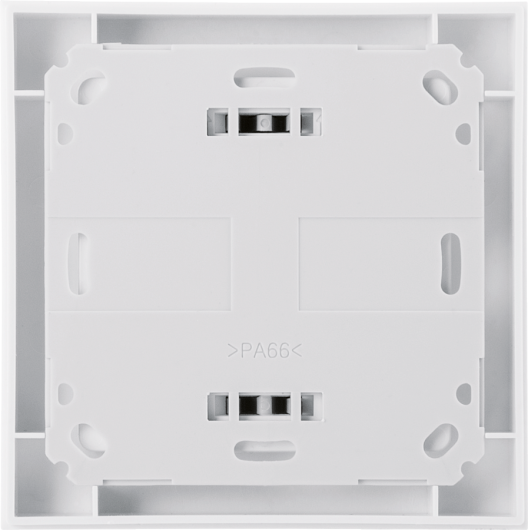

- Can be mounted with the attachment frame provided or integrated into an existing multi-gang frame

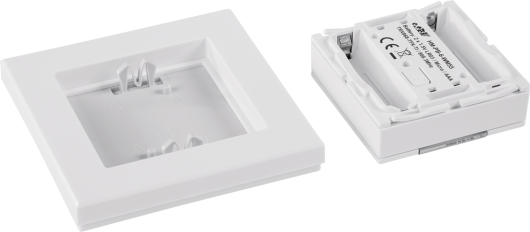

- Can be positioned anywhere by screwing or sticking it in place
- Labelling template for individual button descriptions
Technical Specifications
Supply voltage
2x 1.5 V LR03/micro/AAA
Battery life
5 years (typ.)
Degree of protection
IP20
Ambient temperature
-10 to +55 °C
Dimensions (W x H x D)
85.5 x 85.5 x 21.5 mm
Weight
70 g (not incl. battery)
Radio frequency
868.3 MHz
Typ. open area RF range
300 m
Ordering Informations
Product Name
HM-PB-6-WM55
Item Number
130113
EAN Code
4047976301133
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
184,0 g
