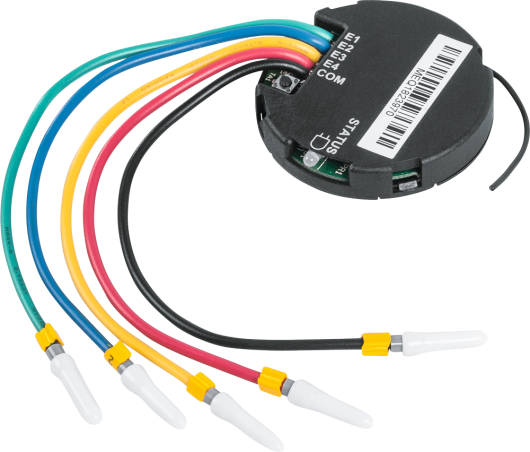

Highlights

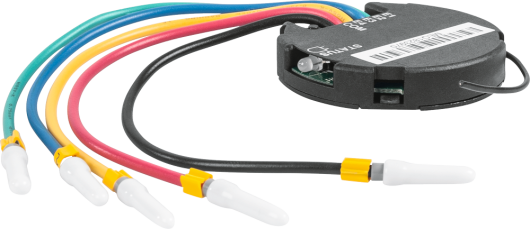

- The slimline design means it can be easily installed in a flush-mounting box
- All Homematic components can be taught-in directly
- Battery lifetime of up to 10 years is possible thanks to energy-saving circuitry
Technical Specifications
Supply voltage

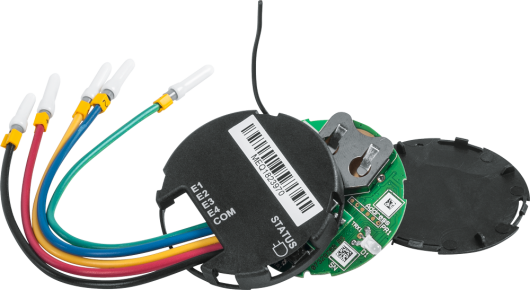

1x Lithium coin cell CR2032
Battery life
10 years (typ.)
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Dimensions (ø x H)
50 x 9 mm
Weight
30 g (not incl. battery)
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name

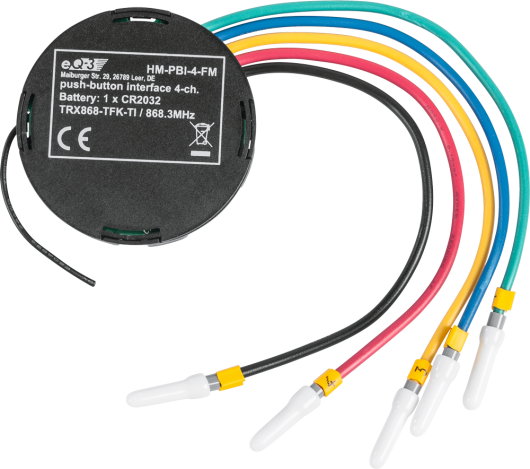

HM-PBI-4-FM
Item Number
76784
EAN Code
4047976767847
Package
144
Dimesions incl. Packaging
122 x 93 x 36 mm
Weight incl. Packaging
76,6 g
