Highlights

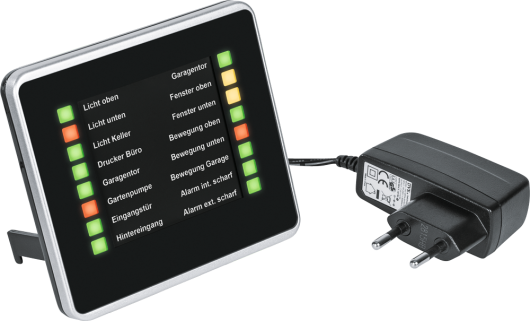

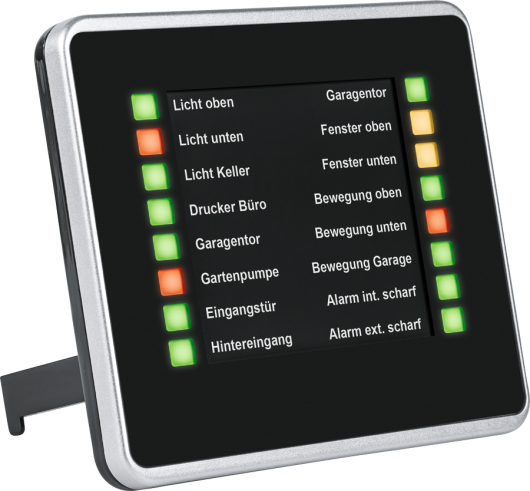

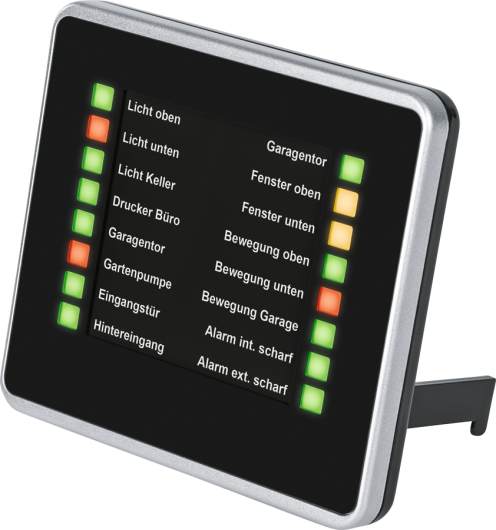

- 16 channel display for device status and/or system variables
- Display of home status- e.g. present/absent, alarm active/inactive, all windows closed – or the status of CCU system programs via system variables
- Multi colour LED display signals up to 4 states (red, green, orange, and off)

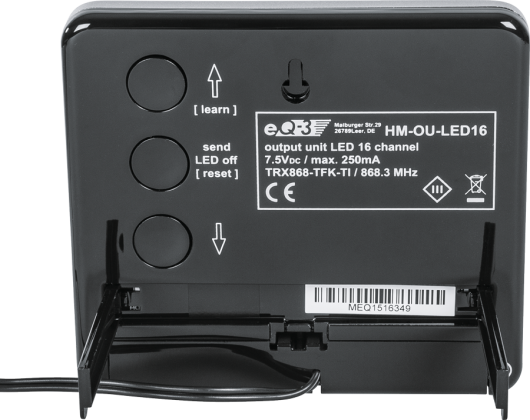

- 3 buttons for activation of up to 16 CCU programs, also for changing system variables (e.g. “pond pump in timer operation”)
- Display brightness can be adjusted in 16 steps via software
- Display eco mode switches LED display automatically off (duration can be adjusted)
Technical Specifications

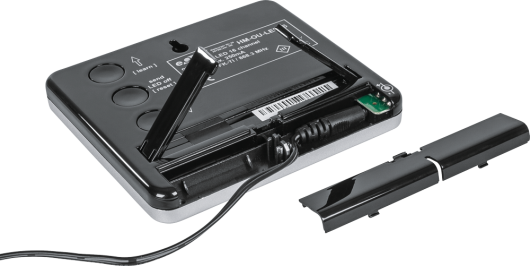

Supply voltage
7.5 VDC
Current consumption
250 mA max.
Standby power consumption
0.45 W
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Dimensions (W x H x D)
110 x 100 x 15 mm
Weight
122 g
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-OU-LED16
Item Number
104798
EAN Code
4047976047987
Package
90
Dimesions incl. Packaging
184 x 140 x 73 mm
Weight incl. Packaging
359.4 g
