Highlights

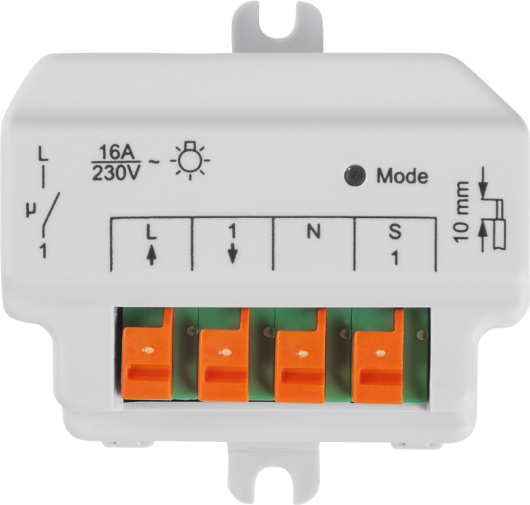

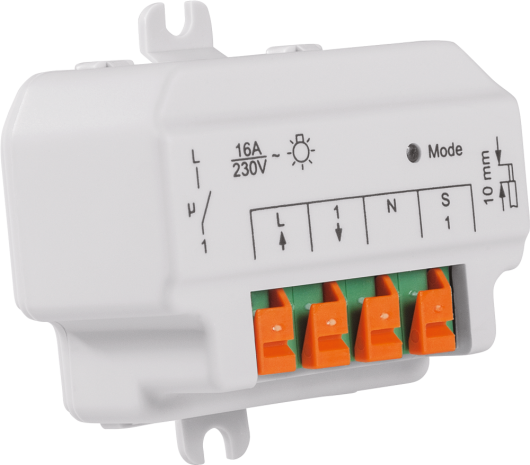

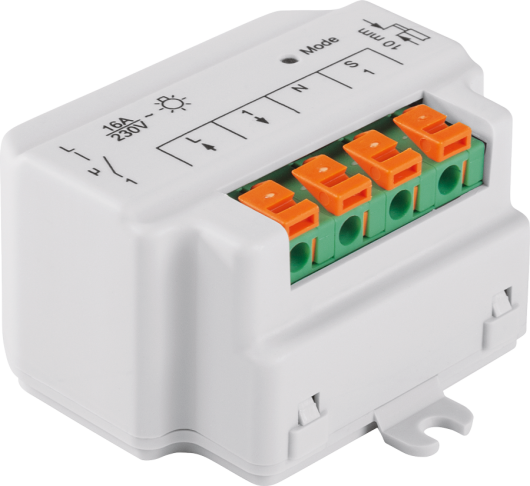

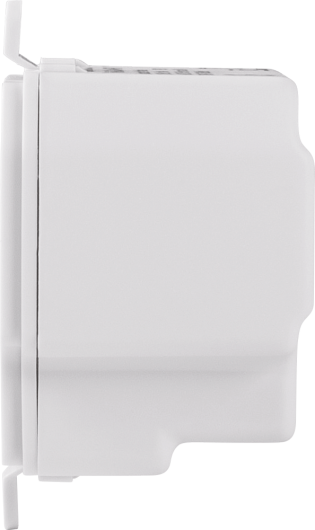

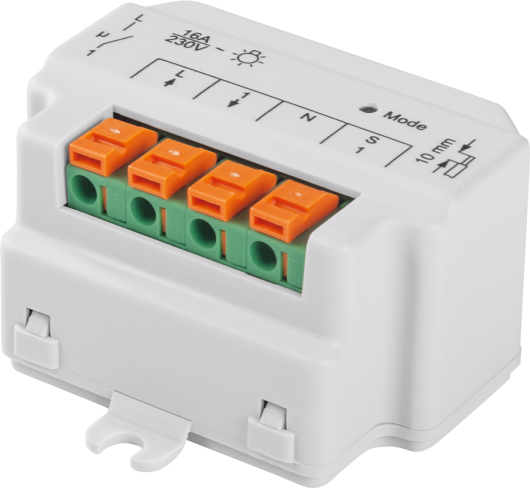

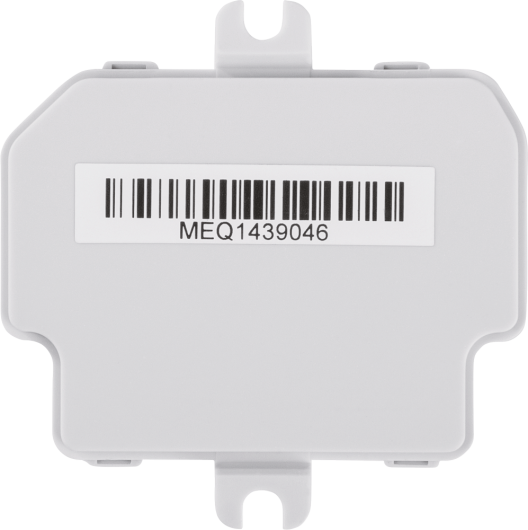

- Small and compact wireless switch actuator suitable for concealed installation in junction or switch boxes
- Connections for conventional push-buttons
- Low current consumption
- Operation on the device is possible using push-buttons
- Multiple remote controls can be connected
- Signal LED for confirmation (e.g. if radio signals have been received)
- Maximum ON time can be configured (in connection with the Homematic Central Control Unit CCU2)
Technical Specifications
Supply voltage
230 V/50 Hz
Typ. open area RF range
200 m
Radio frequency
868.3 MHz
Max. transmission power
10 mA
Standby power consumption
0.5 W
Relay contact
NO contact
Switching capacity
16 A (resistive load)
Degree of protection
IP20
Dimensions (W x H x D)
53 x 53 x 30 mm
Weight
47.8 g
Ordering Informations
Product Name
HM-LC-Sw1-FM
Item Number
76793
EAN Code
4047976767939
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
120.3 g
