Highlights
- The data can be displayed via the HomeMatic Wireless Weather Data Center WDC 7000 or Homematic Central Control Unit CCU2
- Suitable for measuring temperature within a range of -19.9 to +79.9 °C
- Individual controlling options are possible in connection with the Homematic Central Control Unit CCU2
Technical Specifications
Supply voltage

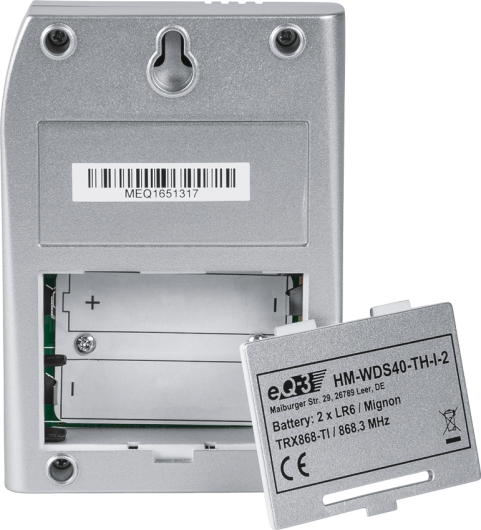

2x 1.5 V LR6/mignon/AA
Battery life
5 years (typ.)
Current consumption
40 mA max.
Ambient temperature
-19.9 to 79.9 °C
Temperature accuracy
± 0.8 °C (10 - 40 °C)
Ambient humidity
1 - 99 % rH
Humidity accuracy
± 5 % (30 - 70 %)
Typ. open area RF range
300 m
Radio frequency
868.3 MHz
Degree of protection
IP20
Dimensions (W x H x D)
70 x 100 x 24 mm
Weight
92 g (incl. batteries)
Ordering Informations
Product Name
HM-WDS40-TH-I-2
Item Number
132095
EAN Code
4047976320950
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
177,6 g
