Highlights
- With base for wall mounting
- The data can be displayed via the HomeMatic Wireless Weather Data Center WDC 7000 or Homematic Central Control Unit CCU2
- Suitable for measuring temperature within a range of -19.9 to +79.9°C
- Individual controlling options are possible in connection with the Homematic Central Control Unit CCU2
Technical Specifications
Supply voltage

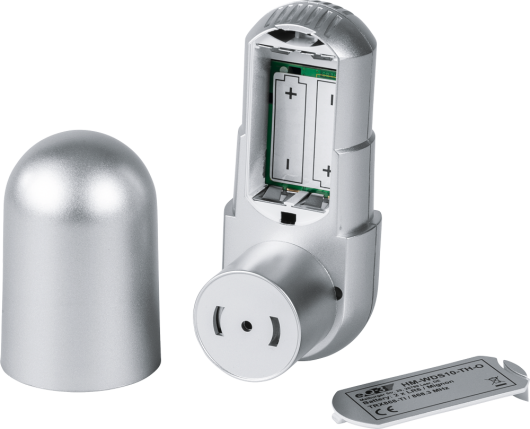

2x 1.5 V LR6/mignon/AA
Current consumption
100 mA max.
Battery life
3 years (typ.)
Temperature measuring range
-19.9 °C to + 79.9 °C
Relative humidity
1–99 % (±5 %)
Ambient temperature
-20 to +55 °C
Degree of protection
IP 44
Dimensions (W x H x D)
54 x 135 x 73 mm
Weight
170 g
Radio frequency
868.3 MHz
Typ. open area RF range
300 m
Ordering Informations
Product Name
HM-WDS10-TH-O
Item Number
76923
EAN Code
4047976769230
Package
30
Dimesions incl. Packaging
122 x 112 x 147 mm
Weight incl. Packaging
313,0 g
