Highlights
- Display and evaluation of data e.g. via Homematic WebUI or Homematic Weather Data Center
- Multiple applications in connection with the Homematic Central Control Unit - e.g. shutters can be controlled depending on the captured weather data (when there is a strong wind, for example)
- Four different wind threshold values can be used with direct connections
- Table for converting brightness values into lux supplied
- Thanks to battery operation, the device offers flexible outdoor installation

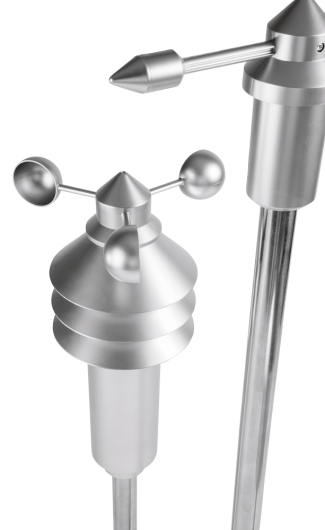

- Mechanically reinforced cup anemometer
- Duo-colour LED for easy and convinient start-up
- Easy installation with durable stainless steel mast
Technical Specifications
Supply voltage
3x 1.5 V LR6/mignon/AA
Battery life
2 years (typ.)
Degree of protection
IP22
Ambient temperature
-20 to +55 °C (typ. ±0,3 °C; max. ±0.4 °C at 0 - 55 °C)
Humidity (relative)
1 - 99 % (typ. ±3 %; max. ±4,5 % at 20 - 80 %)
Brightness (relative)
0 - 255 (reference values)

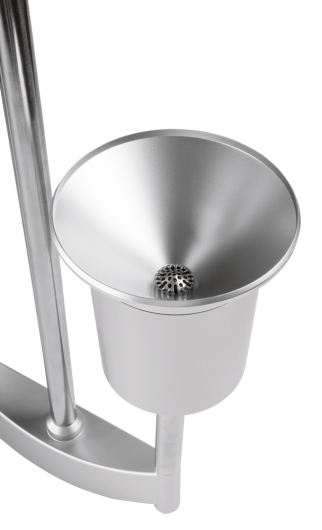

Rainfall volume
0 - 966 mm
Wind velocity
0 - 200 km/h
Wind direction
0 - 355°
Wind direction fluctuation range
0 - 67.5°
Dimensions (W x H x D)
40 x 65 x 15 cm (not incl. mast)
Dimensions (W x ø)
1.58 m x 25 mm
Weight
3.2 kg
Radio frequency
868.3 MHz
Typ. open area RF range
300 m
Ordering Informations
Product Name
HM-WDS100-C6-O-2
Item Number
132192A0
EAN Code
4047976321926
Package
2
Dimesions incl. Packaging
564 × 369 × 147 mm
Weight incl. Packaging
3.473,0 g
