Highlights
- Simultaneous control of all MAX! Radiator Thermostats in a room
- Battery and window status (open/closed) are transmitted to the MAX! Cube Cube
- LED status display (transmission behaviour/duty cycle limit)
- Easy and flexible installation thanks to supplied double-sided adhesive strips or screws
- Long battery life of up to 5 years (alkaline batteries)

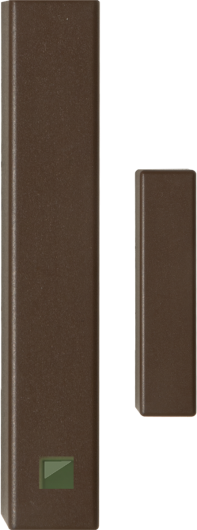

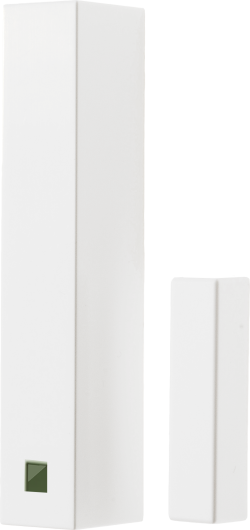

- Both white (RAL 9010) and brown (RAL 8014) covers and spacers for individual adjustment to the colour of window frames are included in the scope of supply
- Understated design suitable for universal use
Technical Specifications
Supply voltage
2x 1.5 V LR03/micro/AAA batteries
Current consumption
50 mA max.
Battery life
5 years (typ.)
Degree of protection
IP20
Dimensions electronic unit (W x H x D)
18.5 x 103.5 x 24.5 mm
Dimensions magnet (W x H x D)
12 x 48 x 12 mm
Weight
52 g (incl. batteries)
Radio frequency
868.3 MHz
Typ. open area RF range
> 100 m
Ordering Informations
Product Name
BC-SC-Rd-WM-2
Item Number
99023
EAN Code
4047976990238
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
177,0 g
