Highlights
- Multiple actions can be performed simultaneously at just one touch of a single button
- No restrictions regarding names you can enter for devices and rooms

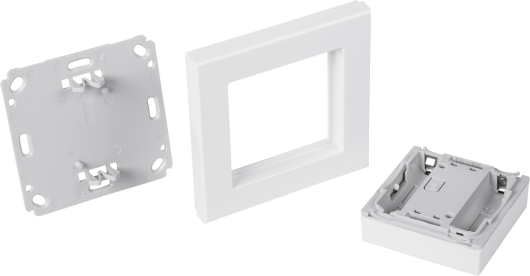

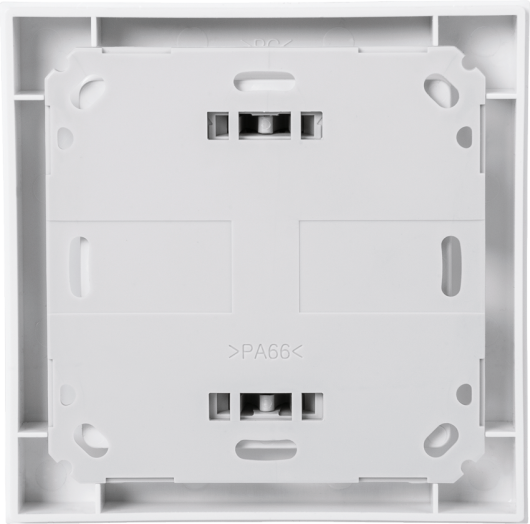

- Can be mounted with the attachment frame provided or integrated into an existing multi-gang frame
- Easy to integrate into existing switches from the following manufacturers:
Berker (S.1, B.1, B.3, B.7 Glas), Busch-Jaeger (balance SI), GIRA (System 55, Standard 55, E2, E22, Event, Esprit), Merten (1-M, Atelier-M, M-Smart, M-Arc, M-Star, M-Plan) JUNG (A 500, AS 500, A plus, A creation) and ELSO (Joy) - Can be positioned anywhere in the room thanks to battery operation
- Direct teach-in, as well as integration and programming via the Central Control Unit CCU2/CCU3
- Up to 20 devices (max. 10 per channel) can be connected
Description
CCU3
Technical Specifications
Supply voltage
2x 1.5 V LR03/micro/AAA
Current consumption
50 mA max.
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Dimensions (W x H x D) without frame
86 x 86 x 19 mm
Dimensions (W x H x D) including frame
55 x 55 x 19 mm
Radio frequency
868.3 MHz
Typ. open area RF range
110 m
Ordering Informations
Product Name
HM-Dis-EP-WM55
Item Number
142408A0
EAN Code
4047976424085
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
178,3 g
